    • Fine Pitch Flexible Circuit

    Features

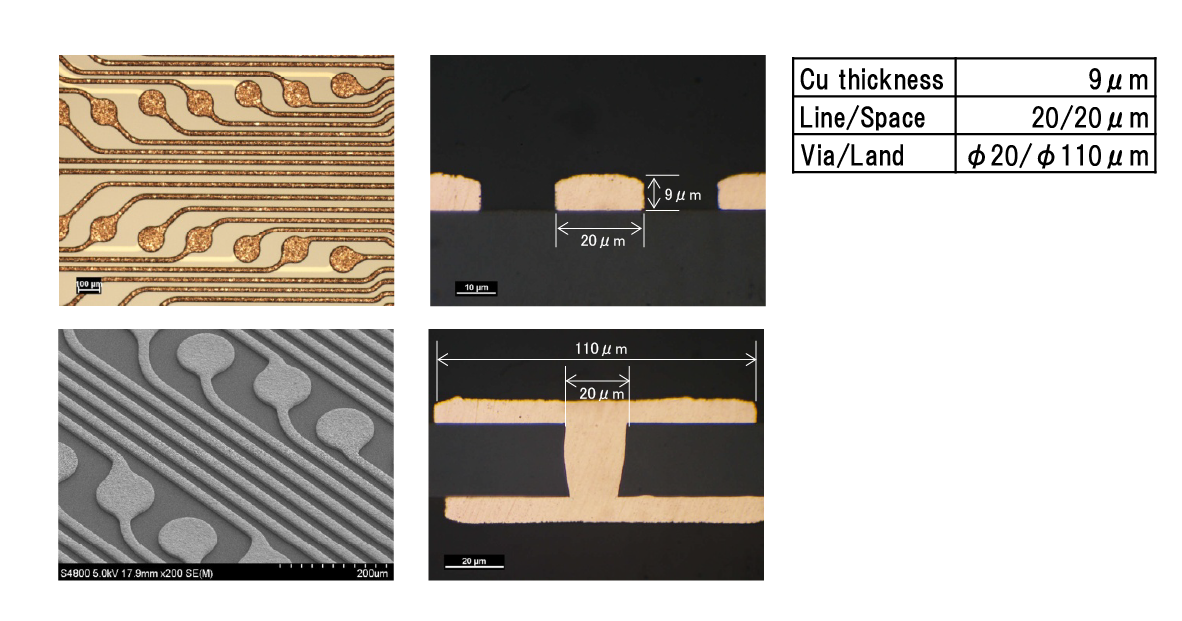

    Fine pitch pattern formation

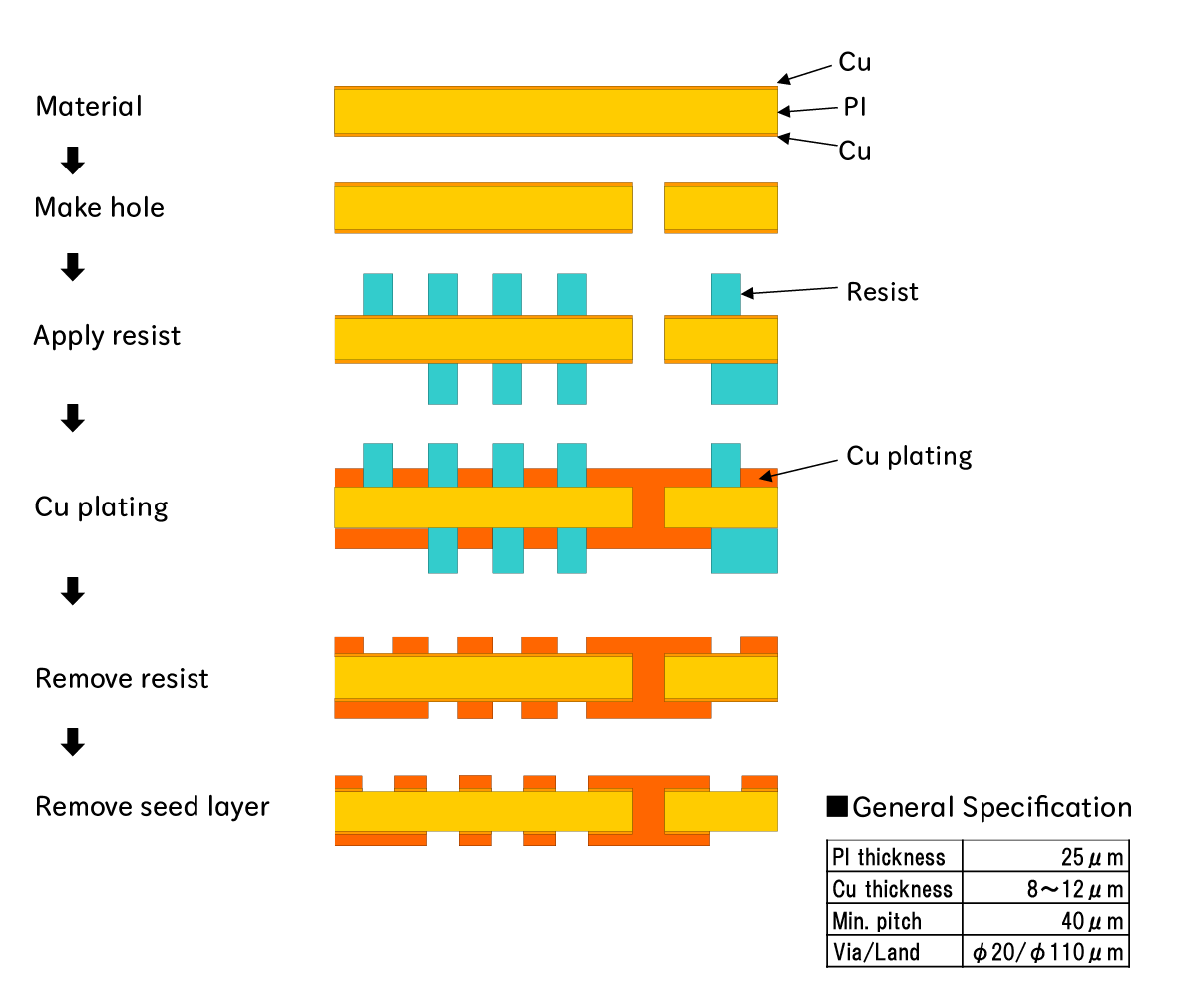

    High productivity process by RtoR

    Single side : MIN P=25μm, Double side : MIN P=30μm

    Narrow gap and thick conductor

    Product

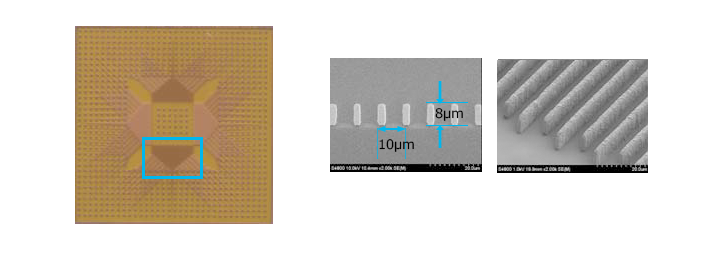

    single side prototype P=10μm

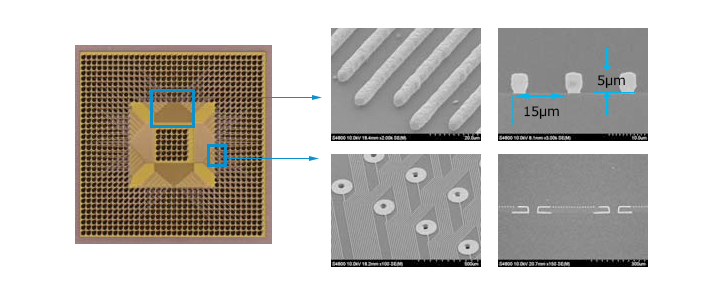

    Double side prototype P=15μm

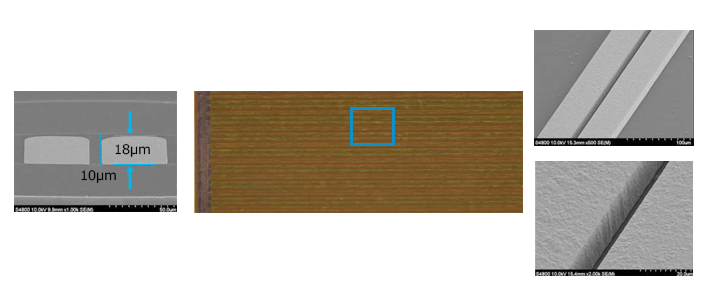

    Narrow gap and thick conductor single side prototype
