  • High Speed Transmission FPC

    To meet the demand for high speed/large volume of data transmission, Mektec has been developing and mass producing High Speed Transmission FPCs using low dielectric materials.Mektec provides a total solution including simulation, pattern design, assembly, proposal of materials and stack ups.
    Mektec’s proven technologies and experiences meet the required specifications and contributes to next-generation of high speed communication.


    Features

    Low transmission loss in high frequency signal

    ・ Low Dk (Low Dielectric Constant)
    ・ Low Df (Low Dielectric Tangent)

      LCP PI
    Dk 2.9 3.3
    Df 0.002 0.018


    Stable high frequency characteristics

    ・Low water absorption

      LCP PI
    Water Absorption(%) <0.04 1.5




    Serial Communication Standard and Speed


    Dielectric Properties of Materials

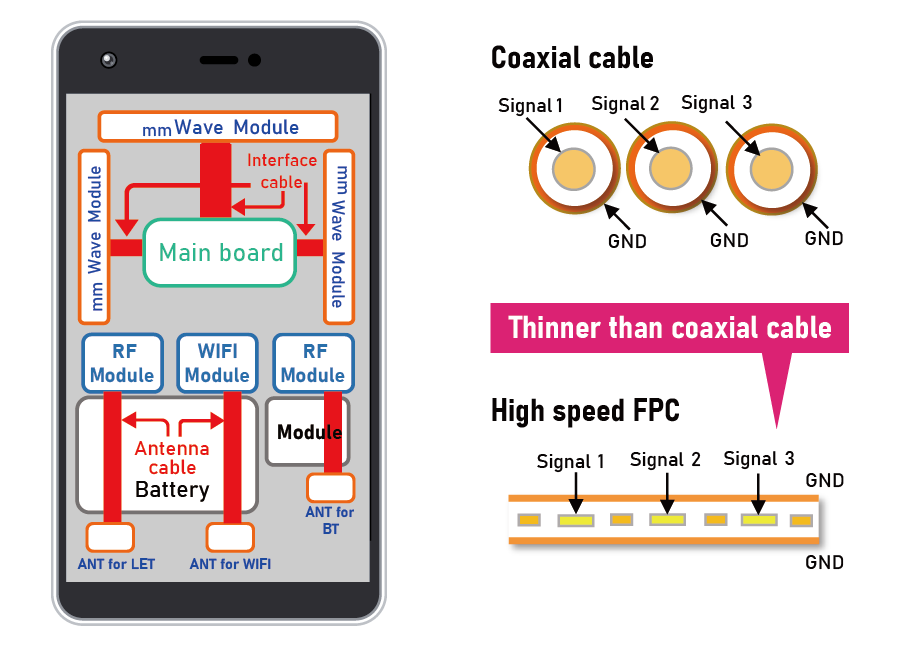

    Antenna FPC Application Example

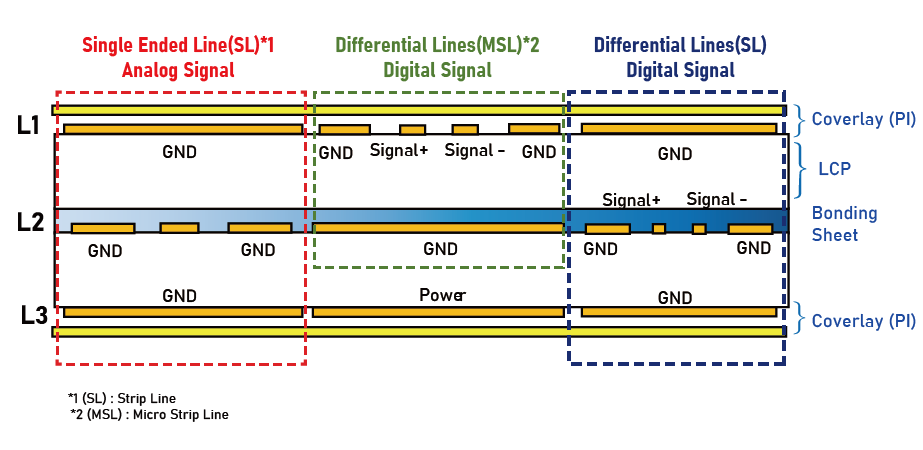

    Analog/Digital Signal Combination FPC

    Under Developing
